New design indoor PT camera with night vision
1. It is a 1080P auto tracking wifi PT IP camera.
2. App remote control in anywhere at any time.

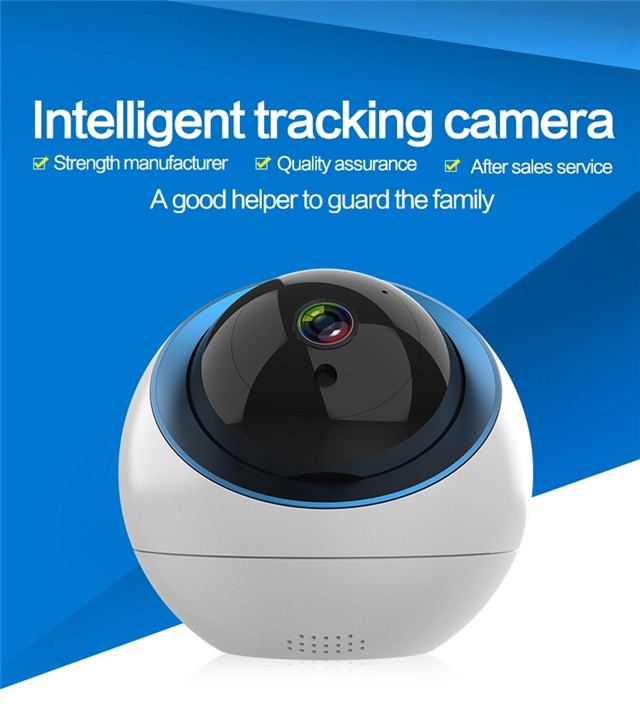

3. Supports motion automatic tracking function.
4. Built-in 6pcs IR LED infrared lights, and IR-cut technology, supports night vision function, available day and night.
5. PIR effective range: 5M.
6. Support motion detection and message push., prevent intruders.
7. Support external 128GB Micro TF card.
8. Two-way audio.
9. One mobile phone APP can control multiplycameras.
10. Free APP for iOS/Android.
APP: “YCC365Plus”, or “TUYASmart” for optional, you can download from Apple Store or Google Play.
| Model: PT02 | ||
| System
|
Main Processor | GK7102 |
| image sensor | GC1034/GC2053 | |
| Operation System | Embedded LINUX OS system | |
| Video
|
High Definition | 720P/1080P |
| Video Compression | Smart H.264+ | |

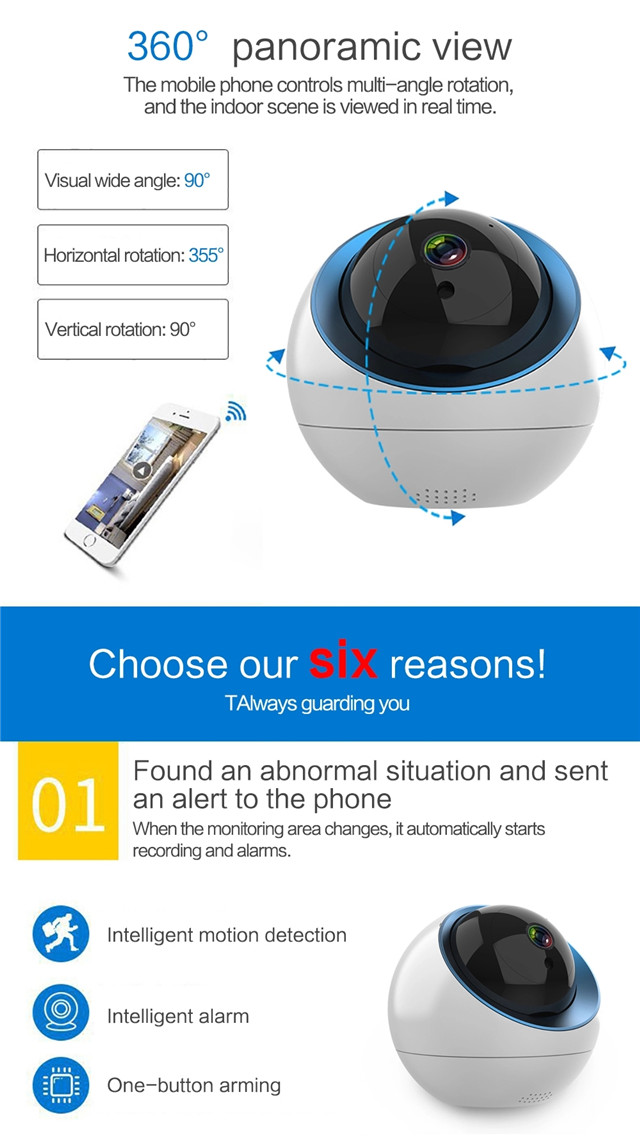

| Rotation angle | Horizontal:355° ; vertical: 90° | |
| Object tracking | Support | |
| low illumination | 0.1LUX/F1.2 | |
| picture Capture | Support | |
| Video Flip | Support | |
| Audio
|
Coding standard | G.711 |
| Two-way Speech | Support | |
| Record management
|
Video file size | 2.5GB-4.5GB/Day |
| Record Mode | Manual record, motion detection record, scheduled record, alarm record | |
| Video storage | Max 128GB TF Card(not included), Cloud storage | |
| playback, back up | Support | |
| Alarm trigger | Video Push,Alarm recording,screen shot capture | |
| Network
|
Network Interface | 1*RJ45 , 10/100M10-100 Base-T, self-adaptable Ethernet port |
| WIFI | 802.11b/g/n | |
| Network Protocol | Support TCP/IP,RTSP,ONVIF, etc | |
| transmission mode | P2P,Smart Cloud Sever | |
| WIFI connection | Sweep QR code,Network Cable connection,AP Hotspot Addition | |
| extend
|
TF Card | Maximum support 128GB TF card |
| Reset key | Support | |
| power supply
|
Power | DC 5V 1.5A |
| Power consumption | 5W | |
| work environment
|
Suitable place | Home,shop,School,factory |
| Installation mode | Flat put,Wall mounted,hoisting | |
| Working Temperature | -10℃-+55℃ | |
| Working humidity | 10%-90% | |
| Other
|
Camera lens | 3.6MM |
| Lamp board | 6 pcs | |

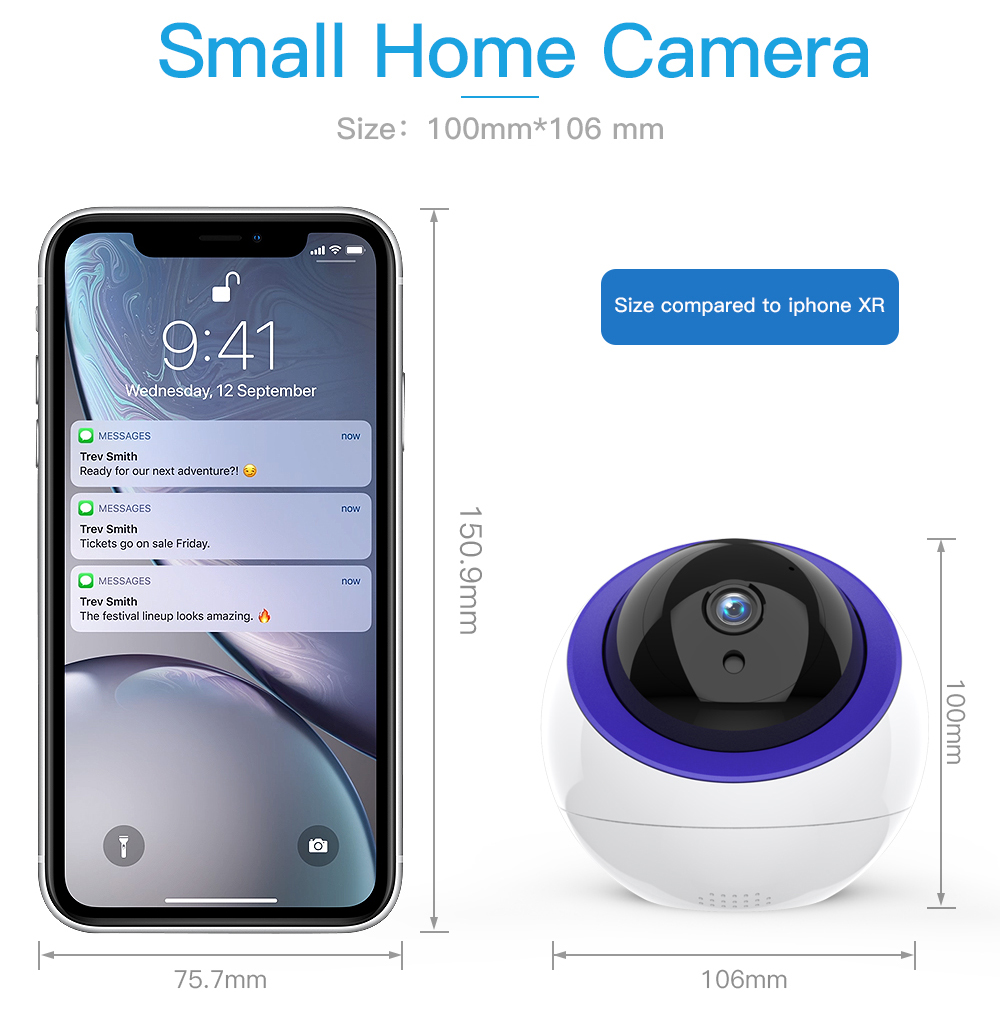

| Product size | 113*113*100 (mm) | |
