Low Power Solar Charging WIFI PTZ Camera
1. HD 2 million pixel CMOS image sensor, which has good low illumination effect and high image definition.
2. Support 2.0MP (1920*1080P) HD resolution.
3. Support IR-CUT day and night switching, support day and night full color, APP free switching.
4. Support phone wake-up and PIR wake-up.
5. Support two-way voice intercom.
6. Support SD card storage, cloud storage, video query playback.
7. Support device sharing .
8. Its own intelligent detection algorithm effectively reduces false alarms.
9. The device configuration can be realized in only 2 steps.
10. The fastest time to wake up to see the image can be within 3 seconds, and the message will be pushed within 1 second.
11. Dual-antenna wifi, the image is smooth at a distance of 100 meters in an open space, and the image is smooth at a distance of 30 meters through the wall.

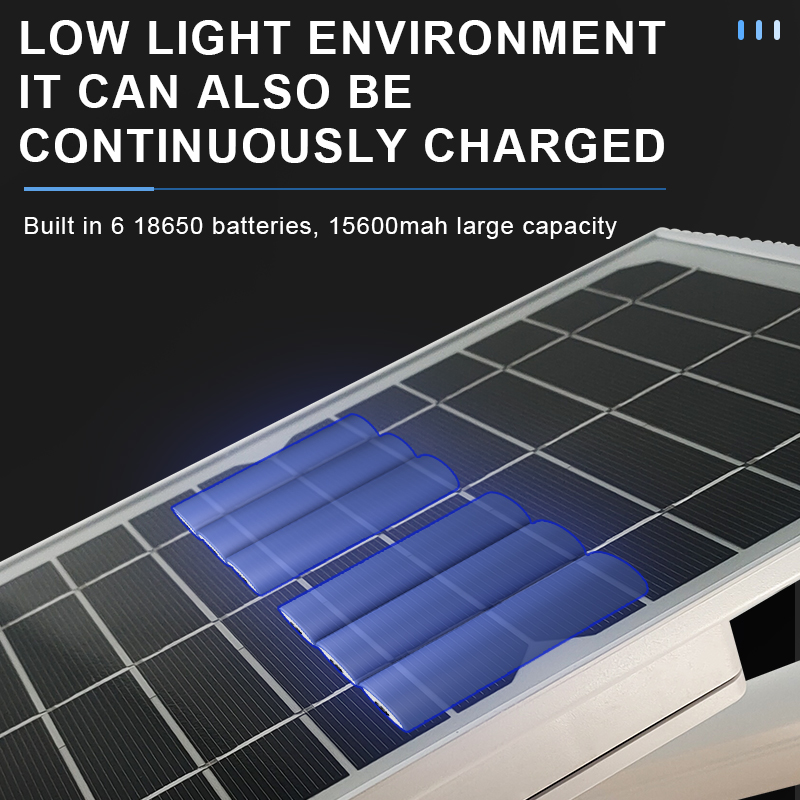

12. Intelligent power saving, long standby time, solar charging built-in 15600mAh original 18650 battery.

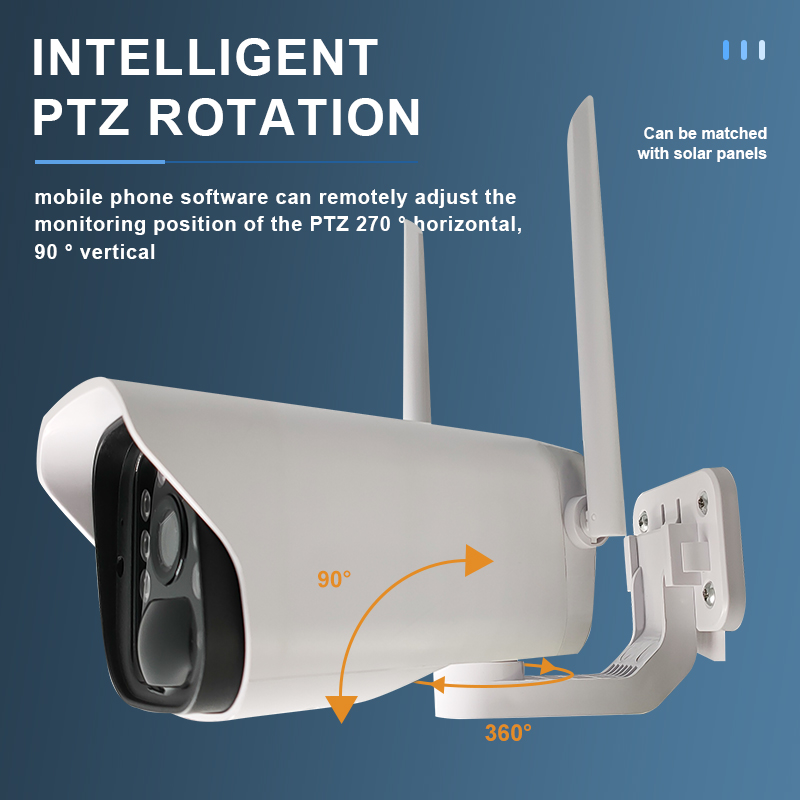

13. PTZ rotation flexible monitoring: freely adjust the angle, horizontal 300°and vertical 90°
14. The first company in the industry can still receive message pushes when the APP exits the background.
| Video camera
|
Sensor | 1/2.9" ultra-low illumination CMOS sensor |
| Sensor effective pixels | 1920*1080 | |
| Minimum illumination | 0.01Lux (color mode); 0.001Lux (black and white mode) | |
| Day and night switch | IR-CUT automatic switching, APP free switching | |

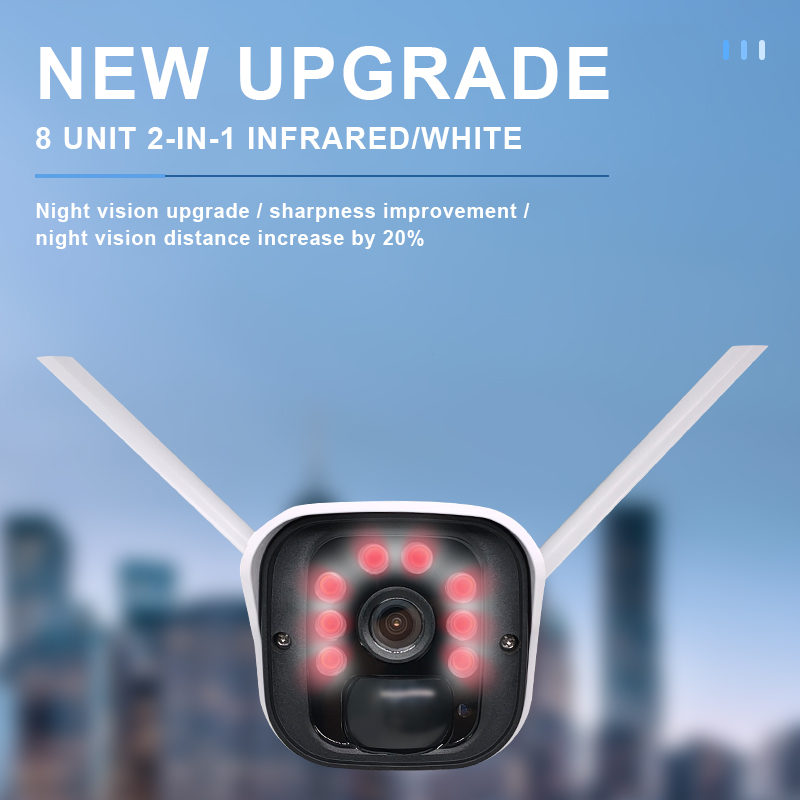

| White Light | Double crystal 4000K high-power warm light lamp, the maximum irradiation distance is 20 meters | |
| IR LED | Dual crystal 850nm high-power infrared lamp, the maximum irradiation distance is 20 meters | |
| Work indicator | Blue & red | |
| Lens parameters
|
Type | Fixed lens |
| Focal length | HD 3.6mm Lens | |
| Angle | Diagonal 135° | |
|
Audio
|
Speaker | 8Ω/2W |
| MIC | Support, sound capture distance> 3 meters | |
| Intercom | Two-way voice intercom | |
| Echo cancellation | Self-response elimination | |
|
Function
|
Storage function | 128G Micro SD card storage Max & cloud storage |
| Video | TF card recording (Event & Continuous Recording, can be set), mobile phone local recording, cloud storage | |
| Motion Detection | PIR motion detection alarm, high sensitivity/mid/Low level adjustable | |
| Alarm Notification push | Fast push within 1 second | |
| Distribution network | Sonic distribution network | |
| WiFi | MT7682、WIFI 2.4GHz 、IEEE802.11b/g/n | |
| PIR alarm distance | Capture distance 8-10 meters | |
| PTZ rotation angle | horizontal 300°and vertical 90° | |
|
Wake-up
|
Wake-up method | Mobile phone remote wake-up, PIR wake-up |
| Wake-up time | ＜500ms | |
|
Power supply
|
Solar powered | 1. Battery capacity 2600mAH*6=15600mAH
2. Charging current 1.5A MAX 3. Solar panel specification 6.5V 8W |
| USB powered | Micro USB interface power supply (DC5.0V) | |
| Working current | 600mA/3.7V | |
| Standby current | 200uA/3.7V | |
| Standby time | 1.5 years | |
| USB charging | 15 hours | |
| Other
|
working environment | -10℃～+60℃, working humidity: ≤95% |
| Storage temperature | “-20 ~ +70 ℃ | |
| Installation method | Wall mount | |
| waterproof level | IP66 |
